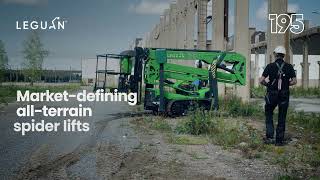

2025 Leguan Lifts 195 SPIDER LIFT

The Leguan 195 is the fastest lift to set up on the market, with unrivalled boom speeds that take the operator to maximum working height in just 55 seconds. Its advanced boom design ensures impressive side reach, even at greater heights, while the intuitive joystick control offers seamless, precise movements, allowing for easy operation in any situation.

A shielded boom structure protects the spider lift’s key components from external damage, making it the perfect choice for demanding jobs such as arboriculture and construction work. Whether navigating tight spaces or tackling complex tasks at height, the Leguan 195 offers performance, reliability, and safety every time.

TECHNICAL FEATURES
Max. lift capacity 550 lbs (2 persons)
Max. working height 65'
Max. platform height 58'
Max. outreach 29' (550 lbs) –
33' (265 lbs)
Transport dimensions, L x W x H 17‘ 4“ x 4‘ 4“ x 7‘ 1“
Platform dimensions 4‘ 4“ x 2’ 6”
Rotation of basket 110º (±55º)
Slewing 440º
Gradeability *) 45% (25º)
Dimensions w/o platform, L x W 15’ 2” x 4’ 1”
Outrigger support dimensions 13’ 5” x 13’ 5”
Max. slope for outriggers 25% (14º)
weight 5,950 lbs
Engine Kubota 21 hp diesel or
110 V / 2.2 kW electric
Drive system: hydraulic tracks
Max. Drive speed 1.9 mph

Standard features
Leguan EDX
21 hp Kubota diesel engine
USB power outlets on platform
Automatic engine RPM control
Automatic levelling of the outriggers
Proportional outreach monitoring system
Electric rotation of the platform
Home/back to work function
JIB-boom with 120-degree operating range
Battery powered emergency lowering system
Lower controls with integrated service display
Intuitive joystick control
Elevated driving position (EDP)
Optional features
110 V electric motor + 110 V power outlet on platform
Remote control for driving and outriggers
LED spotlights for platform
Tool trays on platform
Outrigger beacons
Hose to platform (air/water)
Engine heater
Non-marking tracks
Narrow single person platform
Custom color

•
•
•
•
•
•
•
