2024 Kage 9 FOOT SNOWFIRE BLADE SBK108

NEW 2024 KAGE SBK108 9 FOOT SNOWFIRE BLADE & BOX PLOW SYSTEM

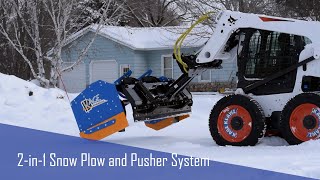

- SEAMLESS TRANSITION FROM SNOW PLOW TO BOX PLOW: The SNOWKAGE box hooks onto a skid steer snow plow to instantly create a revolutionary containment system. This is done in
seconds without leaving the cab – no pins, bolts, or hinges.
- SNOWFIRE PLOW SYSTEM SCRAPING: With the KAGE box attached, the trip edge mechanism of the plow still operates normally. Not only does the trip edge work normally, but so does the cutting
edge! The scraping ability of the plow is not hindered by the ‘shoes’ of the SNOWKAGE. This means that you are always scraping down to asphalt in one pass.
- SNOWPLOW ANGLE FUNCTION: Use the angle function of the plow while you are pushing. This means that you have a huge advantage over fixed snow pushers in that you can maneuver the load
around turns without losing half of it!
- SNOW STACKING: The KAGE system is great for cleanup operations, as well as break-out during a heavy snow fall. The applications for the KAGE system combined with the skid steer versatility are v
virtually endless. In contrast, fixed snow pushers reduce skid steer efficiency and versatility.
- TRI-FORMED BOX FOR STRENGTH: The KAGE Moldboard has a plow structure like no other in its class. The full length Tri-Formed Box structure gives it the most torque resistance and rigidity.
Designs like this have been used in the highway plows for years. This is 10ga GRADE 50, which among other things has a higher tensile strength, meaning it is harder to dent and tear, prolonging the
life of the finish and plow itself.
- HEAVY DUTY POWDER COATING: Powder Coated Snow Plow Blade Baked on powder coat and primer at 400+ degrees safeguards all of the steel components, and keeps the Blade looking great for
years. We don’t like the look of rust streaks or deteriorating pockets of corrosion, and we guess neither do you, so we eliminate all of that through a proprietary method of applying seam sealer to all un-
welded joints prior to the finish getting baked on.
- 9" PLOW BLADE TRIP EDGE: The Blade features a tall, 9? safety trip-edge standard. This prevents accidental damage when encountering hidden obstacles by tripping back 68 degrees. Powered by
four compression style return springs and pivoting on 7 total 1 inch trip pins, it trips when you need it, and stays put when you don’t.
- BLADE DOWN PRESSURE: Snow Plow Down pressure? Bring it on! Trip edges like this are meant to take the abuse so common to skid steer plowing.
- AGGRESSUVE PLOW ANGLE: The Attack Angle is an aggressive 65 degrees so that it scrapes cleanly – forward and backwards. Mounted onto the trip edge is a High Carbon steel cutting edge, 6
inches tall, 5/8 inches thick.
- REPLACEABLE PLOW CUTTING EDGE: Our cutting edges are also a result of the highway department standards, and will fit up with any ‘standard highway punch’ design, available almost anywhere.
No-one wants more downtime, so just replace the edge as needed – no need to move, rotate, flip or flop!
- HYDRAULIC SYSTEM PROTECTIVE SLEEVES & ADVANCED COUPLERS: First, we put protective sleeves on all of the hoses; standard. Next we include a Stucchi APM Series Male and Female
Coupling that will connect by hand with residual pressure of 300 bar or 2900 psi locked in the hydraulic circuit. It will connect with residual pressure without releasing any fluid into the environment.
- SEVERE PLOWING ANGLE; Angle plowing with a skid steer at low speed? Absolutely! No question that this is efficient, and it’s made even better with the severe 35 degree max angle that the plow can
achieve. This is more productive and efficient than plowing with trucks in many situations!
- SNOW BLADE OSCILLATION: The next thing is oscillation, this prevents situations when your blade doesn’t stay flat on the plowing surface, whether due to uneven pavement, or improper
boom adjustment. The KAGE Blade always stays flat on the plowing surface, from tip to t
